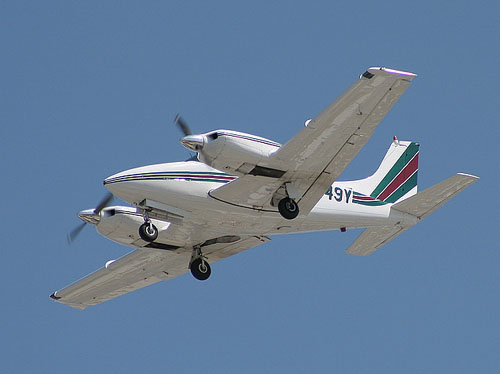

PA-30 Twin Comanche

Piper Aircraft Corporation

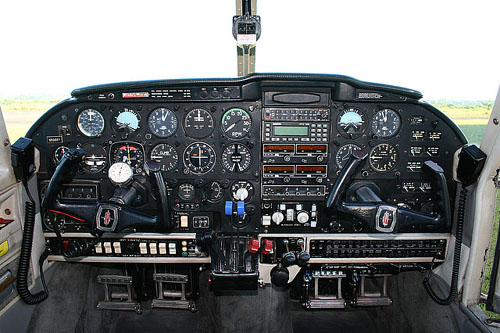

Приборная доска:

фотографии с сайта www.airliners.net

General characteristics
Crew: one, pilot
Capacity: 3 passengers
Length: 25 ft 2 in (7.67 m)
Wingspan: 36 ft 0 in (10.97 m)
Height: 8 ft 2 in (2.49 m)
Wing area: 178 ft² (16.5 m²)
Empty: 2,210 lb (1,002 kg)
Loaded: lb ( kg)
Maximum takeoff: 3,600 lb (1,633 kg)
Powerplant: 2x Lycoming IO-320-B1 A, 160 hp (120 kW) each; Turbo B & C models has IO-320-C1A's, while the originals had turbos added to the B1A's. All turbos are Rajays, thus the engines are not TIO-320s. The PA39 has a single LIO-320-B1 A (or C1 A if turbocharged).

Performance
Maximum speed: 206 mph (330 km/h)
Range: 1,122 miles (1,795 km)
Service ceiling: 25,000 ft (7,622 m)
Rate of climb: 1,460 ft/min (445 m/min)
