D-9 Bebe

SAB AVIONS JODEL

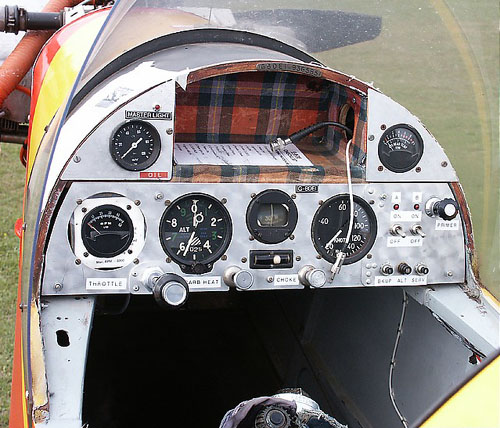

Приборная доска:

фотографии с сайта www.airliners.net

Specifications

Overall dimensions:
Length 5.40 m
Wing span 7 m
Wing area 9 m2
Aspect ratio
Weights and loadings:
Empty weight (typical) 198 kg
Max Take off weight 320 kg
Usefull load 127 kg
Bagage capacity 9 kg
Power loading 5.9 kg/hp
Fuel capacity 36 l
Wing loading 36 kg/m2

Other specs:
Gear Tailwheel
Seats 1
Controls Stick and rudder
Material Wood and fabric
Engine:
Various (mostly Volkwagen) 35-70 hp
Performance: (Using 55 hp VW)
Wing max stressed to 9 G
Max speed, sea level 165 km/h
Cruise speed 135 km/h
Vne 200 km/h
Stall speed (indicated) 40 km/h
Climb rate 3.3 m/s
Service ceiling 3660 m
Take-off roll 90 m
Landing roll (no brakes) 80 m
Range (with reserves) 360 km
