PA-38-112 Tomahawk

Piper Aircraft Corporation

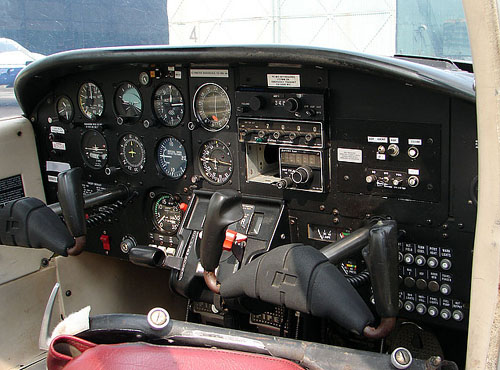

Приборная доска:

фотографии с сайта www.airliners.net

General characteristics
Crew: one, plus one passenger
Length: 23 ft 1 in (7.04 m)
Wingspan: 34 ft 0 in (10.36 m)
Height: 9 ft 1 in (2.77 m)
Wing area: 125 ft² (11.6 m²)
Empty: 1,128 lb (512 kg)
Maximum takeoff: 1,670 lb (757 kg)
Powerplant: 1x Avco Lycoming O-235-L2A(Bendix magnetos) & -L2C(Slick mags), 112 hp (85 kW)

Performance
Maximum speed: 126 mph (202 km/h)
Range: 542 miles (867 km)
Service ceiling: 13000 ft (4000 m)
Rate of climb: 718 ft/min (219 m/min)
Wing loading: 13.39 lb/ft² (65.38 kg/m²)
