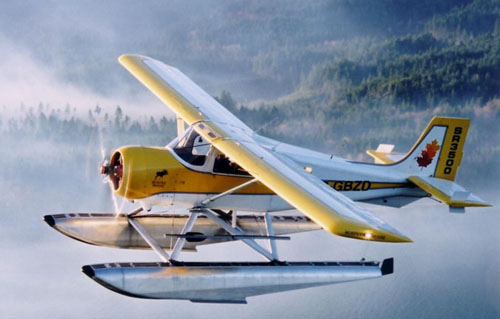

SR 3500 Moose

MURPHY AIRCRAFT

фотография с сайта www.murphyair.com

General Information Moose
GROSS WEIGHT 3500 LB.
EMPTY WEIGHT 1650 - 1800 LB.
G-LOADING (NORMAL) +5.7 -3.8
POWER RANGE 250 - 360 HP
WING SPAN 36'
LENGTH 23'
FUSELAGE WIDTH 44"
WING CHORD 60"
TAIL SPAN 130"
TAIL CHORD 33.5"
AIRFOIL 4415 (MODIFIED)
FLAPS
AREA 22.5 SQ. FT
REFLEX 5
DROOP 40
AILERONS
AREA 25.5 SQ. FT
REFLEX 5
UP DEFLECTION 20
DOWN DEFLECTION 12

Performance Specs Moose
Engine Model O-540
Horsepower 250
Power Loading (lb./hp) 14.0
Gross Weight (lb.) 3500
Empty Weight (lb.) 1650-1750
Useful Load (lb.) 1750-1850
Wing Area (sqft) 182
Wing Loading (lb./sqft) 19.2
Rate of Climb (ft/min) 950
Take Off Run (ft) 800
Landing Roll (ft) 600
Stall (no flap) Power off  64
Stall (full flap) Power off  58
Cruise (70% Power) 143
Vne (mph) 189
Top Speed (mph) 155
Fuel Burn (USG/hr) 14.1
Fuel Capacity (USG) 60
Endurance (hrs) 4.3
Range (statute miles) 610
G Limit (Ultimate) +5.7 -3.8

Сайт разработчика: www.murphyair.com
