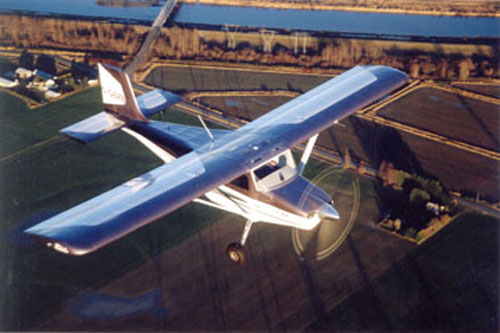

Elite

MURPHY AIRCRAFT

фотография с сайта www.murphyair.com

General Information
Gross Weight 1800 LB.
Empty Weight * 920-980 lb.
G-Loading (Normal Category) +5.7 -3.8
Power Range 116-180 HP
Wing Span 30' 4"
Length 22' 3"
Fuselage Width 44"
Wing Chord 60"
Tail Span 110"
Tail Chord 38"
Airfoil 4415 (MODIFIED)

Elite Performance Specs O-235
Horsepower 116
Gross Weight (lb.) 1800
Empty Weight (lb.) 920
Useful Load (lb.) 880
Wing Area (sq. ft) 152
Wing Loading (lb./sq. ft) 11.авг
Rate of Climb @ Gross (ft/min) 600
Take Off Run (ft) 700
Landing Roll (ft) 400
Stall (No Flap)Power Off (mph) 46
Stall (Full Flap) Power On (mph) 42
Cruise (65% POWER) (mph) 118
Vne (mph) 157
Top Speed (mph) 130
Fuel Capacity (US gal) 44
Range (hrs) 7.0
Range (statute miles) 824
G Limit (Ultimate) +5.7 -3.8

Сайт разработчика: www.murphyair.com
