S51-D Mustang

Stewart 51 Inc.

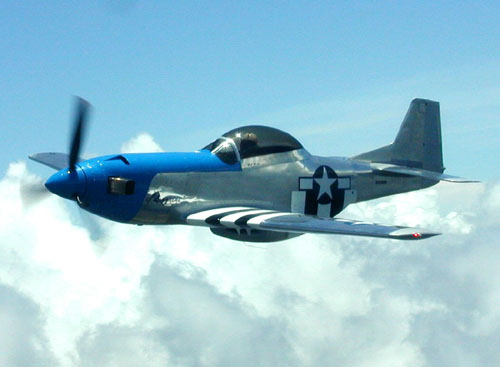

фотография с сайта www.seas.ucla.edu

Performance (w/ 600 hp engine)
Parameter Value
Stall (at gross wt) 74 mph
Cruise (at 75% power) 289 mph @ 28.5 gal/hr
Top speed (level flight) 334 mph @ 38 gal/hr
Vne flight tested to more than 350 mph indicated
Rate of climb 4320 ft/min at sea level
Max flap speed 150 mph
Max gear speed 130 mph
Range at cruise (68 gal std fuel, no reserve) 689 mi
Range at cruise (138 gal w/ aux tanks, no reserve) 1400 mi
Range at cruise (188 gal w/ aux & drop tanks, no reserve) 1900 mi
Service ceiling 29,400 ft

Specifications
Parameter S51-D
Wingspan 26'9"
Washout 1.5 degrees
Length 22'4"
Height 9'4"
Empty weight 2400 lbs
Gross weight 3500 lbs
Engine V-8 (600 hp)
Wing area 123 ft^2
Wing loading 28.4 lbs/ft^2 @ 3500 lbs
Power loading 5.8 lbs/hp @ 3500 lbs
Fuel capacity (std) 68 gal
Fuel capacity (aux) 70 gal
Fuel capacity (drop) 50 gal
Seats 2 (tandem)
Controls duel, no instruments in rear
Landing gear retractable (electro-hydraulic)
Flaps electric screwjack (0-40 degrees)
Tailwheel locking (+- 6 degrees travel)
Propeller Hartzell 4 blade constant speed, 92" dia
