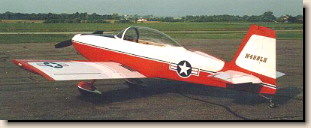

RV-8

VAN'S AIRCRAFT

RV-8A

Приборная доска:

фотографии с сайта www.vansaircraft.com

RV-8 Specifications

Exterior Dimensions
Span 24 ft
Length 21 ft
Height 5 ft 7 in
Wing Area 116 sq ft
Weights
Empty Weight 1067 - 1120 lbs
Gross Weight 1800 lbs
Loadings
Wing Loading 15.5 lb/sq ft
Power Loading 12 - 9 lb/hp
Powerplant/Systems
Engine 150-200 hp
Propeller [in prototype] Fixed or C/S
Fuel Capacity 42 US gal
Other
Baggage 125 lbs

RV-8A Specifications

Exterior Dimensions
Span 24 ft
Length 20 ft 10 in
Height 7 ft 4 in
Wing Area 116 sq ft
Weights
Empty Weight 1067 - 1120 lbs
Gross Weight 1800 lbs
Loadings
Wing Loading 15.5 lb/sq ft
Power Loading 12 - 9 lb/hp
Powerplant/Systems
Engine 150-200 hp
Propeller [in prototype] Fixed or C/S
Fuel Capacity 42 US gal
Other
Baggage 125 lbs

RV-8 Performance

Solo Weight 1400 lbs
Gross Weight 1800 lbs 160 hp 180 hp 200 hp
Empty weight and performance measured with Hartzell 2 Blade C/S prop
Speed - Solo Weight
Top Speed 206 mph 214 mph 222 mph
Cruise [75% @ 8000 ft] 197 mph 204 mph 212 mph
Cruise [55% @ 8000 ft] 175 mph 182 mph 189 mph
Stall Speed 51 mph 51 mph 51 mph
Speed - Gross Weight
Top Speed 205 mph 213 mph 221 mph
Cruise [75% @ 8000 ft] 195 mph 203 mph 210 mph
Cruise [55% @ 8000 ft] 173 mph 180 mph 187 mph
Stall Speed 58 mph 58 mph 58 mph
Ground Performance - Solo Weight
Takeoff Distance 300 ft 275 ft 250 ft
Landing Distance 350 ft 350 ft 350 ft
Ground Performance - Gross Weight
Takeoff Distance 650 ft 575 ft 500 ft
Landing Distance 500 ft 500 ft 500 ft
Climb/Ceiling - Solo Weight
Rate of Climb 2,000 fpm 2,300 fpm 2,700 fpm
Ceiling 21,000 ft 23,000 ft 25,500 ft
Climb/Ceiling - Gross Weight
Rate of Climb 1,400 fpm 1,650 fpm 1,900 fpm
Ceiling 18,500 ft 20,500 ft 22,500 ft
Range
Range [75% @ 8000 ft] 855 sm 790 sm 780 sm
Range [55% @ 8000 ft] 1,030 sm 955 sm 940 sm

RV-8A Performance

Solo Weight 1400 lbs
Gross Weight 1800 lbs 160 hp 180 hp 200 hp
Empty weight and performance measured with Hartzell 2 Blade C/S prop
Speed - Solo Weight
Top Speed 204 mph 212 mph 220 mph
Cruise [75% @ 8000 ft] 195 mph 202 mph 210 mph
Cruise [55% @ 8000 ft] 173 mph 180 mph 187 mph
Stall Speed 51 mph 51 mph 51 mph
Speed - Gross Weight
Top Speed 203 mph 211 mph 219 mph
Cruise [75% @ 8000 ft] 193 mph 201 mph 208 mph
Cruise [55% @ 8000 ft] 171 mph 178 mph 184 mph
Stall Speed 58 mph 58 mph 58 mph
Ground Performance - Solo Weight
Takeoff Distance 300 ft 275 ft 250 ft
Landing Distance 350 ft 350 ft 350 ft
Ground Performance - Gross Weight
Takeoff Distance 650 ft 575 ft 500 ft
Landing Distance 500 ft 500 ft 500 ft
Climb/Ceiling - Solo Weight
Rate of Climb 1,900 fpm 2,200 fpm 2,600 fpm
Ceiling 20,000 ft 22,000 ft 24,500 ft
Climb/Ceiling - Gross Weight
Rate of Climb 1,350 fpm 1,600 fpm 1,800 fpm
Ceiling 17,500 ft 19,500 ft 21,500 ft
Range
Range [75% @ 8000 ft] 845 sm 780 sm 770 sm
Range [55% @ 8000 ft] 1020 sm 945 sm 930 sm

Сайт разработчика: www.vansaircraft.com
