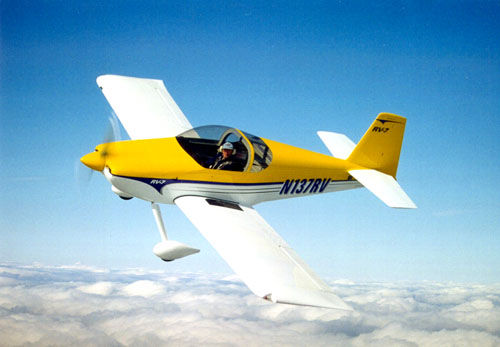

RV-7

VAN'S AIRCRAFT

RV-7A

фотографии с сайта www.vansaircraft.com

Приборная доска:

фотографии с сайта www.na.ru

RV-7 Specifications

Exterior Dimensions
Span 25 ft 0in.
Length 20 ft 4 in.
Height 5 ft 10 in
Wing Area 121 sq ft
Weights
Empty Weight 1061 - 1114 lbs
Gross Weight 1800 lbs
Loadings
Wing Loading   14.8 lb/sq ft
Power Loading  12.0 -  9.0 lb/hp
Powerplant/Systems
Engine 150-200 hp
Propeller  Fixed or C/S
Fuel Capacity 42 US gal
Other
Baggage 100 lbs

RV-7A Specifications

Exterior Dimensions
Span 25 ft 0 in
Length 20 ft 4 in
Height 7 ft 10 in
Wing Area 121 sq ft
Weights
Empty Weight 1077 - 1130 lbs
Gross Weight 1800 lbs
Loadings
Wing Loading    14.8 lb/sq ft
Power Loading   12.0 - 9.0 lb/hp
Powerplant/Systems
Engine 150-200 hp
Propeller  Fixed or C/S
Fuel Capacity 42 US gal
Other
Baggage 100 lbs

RV-7 Performance

Solo Weight 1400 lbs
Gross Weight 1800 lbs 160 hp 180 hp 200 hp
Empty weight and performance measured with Hartzell 2 Blade C/S prop
Speed - Solo Weight
Top Speed 202 mph 210 mph 217 mph
Cruise [75% @ 8000 ft] 192 mph 200 mph 207 mph
Cruise [55% @ 8000 ft] 173 mph 180 mph 187 mph
Stall Speed 51 mph 51 mph 51 mph
Speed - Gross Weight
Top Speed 201 mph 209 mph 216 mph
Cruise [75% @ 8000 ft] 191 mph 199 mph 206 mph
Cruise [55% @ 8000 ft] 172 mph 179 mph 186 mph
Stall Speed 58 mph 58 mph 58 mph
Ground Performance - Solo Weight
Takeoff Distance 300 ft 275 ft 250 ft
Landing Distance 350 ft 350 ft 350 ft
Ground Performance - Gross Weight
Takeoff Distance 650 ft 575 ft 500 ft
Landing Distance 500 ft 500 ft 500 ft
Climb/Ceiling - Solo Weight
Rate of Climb 1,900 fpm 2,200 fpm 2,550 fpm
Ceiling 21,000 ft 23,000 ft 25,500 ft
Climb/Ceiling - Gross Weight
Rate of Climb 1,400 fpm 1,650 fpm 1,900 fpm
Ceiling 18,500 ft 20,500 ft 22,500 ft
Range
Range [75% @ 8000 ft] 835 sm 775 sm 765 sm
Range [55% @ 8000 ft] 1,025 sm 950 sm 935 sm



RV-7A Performance

Solo Weight 1400 lbs
Gross Weight 1800 lbs 160 hp 180 hp 200 hp
Empty weight and performance measured with Hartzell 2 Blade C/S prop
Speed - Solo Weight
Top Speed 200 mph 208 mph 215 mph
Cruise [75% @ 8000 ft] 190 mph 198 mph 205 mph
Cruise [55% @ 8000 ft] 171 mph 178 mph 185 mph
Stall Speed 51 mph 51 mph 51 mph
Speed - Gross Weight
Top Speed 199 mph 207 mph 213 mph
Cruise [75% @ 8000 ft] 189 mph 197 mph 204 mph
Cruise [55% @ 8000 ft] 170 mph 177 mph 183 mph
Stall Speed 58 mph 58 mph 58 mph
Ground Performance - Solo Weight
Takeoff Distance 300 ft 275 ft 250 ft
Landing Distance 350 ft 350 ft 350 ft
Ground Performance - Gross Weight
Takeoff Distance 650 ft 575 ft 500 ft
Landing Distance 500 ft 500 ft 500 ft
Climb/Ceiling - Solo Weight
Rate of Climb 1,800 fpm 2,100 fpm 2,450 fpm
Ceiling 20,000 ft 22,000 ft 24,500 ft
Climb/Ceiling - Gross Weight
Rate of Climb 1,350 fpm 1,600 fpm 1,850 fpm
Ceiling 17,500 ft 19,500 ft 21,500 ft
Range
Range [75% @ 8000 ft] 825 sm 765 sm 755 sm
Range [55% @ 8000 ft] 1015 sm 940 sm 925 sm

Сайт разработчика: www.vansaircraft.com
